The ClassSync Modeling Language (CML) addresses the problem of creating a controlling overlay to classroom learning activities, or e-leaming workflows. Our aim is to allow authors and teachers to generate a mapping from activity design to its implementation in a wirelessly networked classroom with ubiquitous use of handheld computers for information exchange. CML models e-learning workflows with three major components: actors, data objects, and interaction networks. Actors are the diverse perfonners of actions. data objects are the semantically typed information units that are made available for exchange. Interaction networks are virtual networks constructed on top of whatever network ClassSync is running on. and dictate how information may flow through the ClassSync system (from actor to actor). Activities are the processes performed via these three components, in which actors create and consume data objects and exchange them over an interaction network. The benefits of this approach for students, curriculum designers, teachers, publishers and learning sciences researchers are highlighted. p. 1

Keywords EML (Education Modeling Language) p. 1

patterns of classroom interaction p. 1

In non-computer based collaborative patterns of instruction, teachers assemble plans for assigning students to groups, distribute written or oral instructions for their work. including assignment of specific roles to students and constraints on their work in terms of time, document access, and work products required to result from their activity. Teachers collect work, annotate it with scores or comments, and re-distribute it to students to hrther their learning. Dozens of learning activity cycles like these a day define the work of the classroom. Designing, implementing, and monitoring these learning activities is a workflow challenge, as research in teacher cognition, planning, and learning has highlighted (e.g., Borko & Putnam, 1996; Cohen et al.. 1993; Hammond & Sykes. 2001; Little & McLaughlin, 1993). Teachers currently plan and manage these efforts using a broad array of documents and physical resources, including class lists, publishers' teacher activity guides, seat-based distribution of textbook instructions or photocopied materials, physical separation of groups in the classroom space, worksheets to be completed, informal observations of equitable participation by students in discussions, and the like. In the case of small-group learning, tracking group progress and individual students' participation is important, given well-known problems in group work such as the “free rider” phenomenon (Salomon & Globerson. 1989). and the likelihood that student work in groups can be beset with collaboration breakdowns (Barron, 2000) and unproductive inquiries if interim project milestones are not required (Polman. 1999). These classroom activity structures and affiliated workflow patterns have become yet more complex with the introduction of computer technologies in classrooms, in which individual use of shared resources such as desktop computers, printers, computer projectors for displaying work, data collection probes and sensors, and other devices need to be integrated with non-computer facilitated classroom activity components. p. 1

much of the effort required to set up such arrangements of learners, documents, and task structures. much less to learn from the outcomes of such designs in ways that could lead to improvements, does not result in searchable records and re-usable activity structures. We call this the 'act becomes artifact' problem-and opportunity for innovation and research. With increasing teacher accountability for promoting student learning, it will become increasingly important to provide support for ongoing formative assessment to help diagnose student difficulties and determine productive strategies for overcoming them. Semantic tagging of the actors, data objects. and interaction networks has significant promise for “informating” (rather than “automating”: Zuboff. 1988) classroom workflow by turning normally transient instructional (and learner) acts into artifacts for data mining. p. 1

Importance of adaptive teaching, dealing contingently with emerging needs p. 2

We envision an extremely low cost system with a wireless network, individual handheld computers. minimal maintenance during school, and with low-threshold user interface for teacher and student use to handle the major proportion of instructional workflow. Real value needs to be added to the paper now primarily used for these purposes. Such a system needs to handle access permissions, distribution of tasks and instructional resources; and collection of activity results from students without requiring teachers to become network system administrators. p. 2

CML, the ClassSync Modeling Language, is a language for generating a mapping from activity design to implementation of the activity on a network of handheld computers. CML has three components: actors. data objects, and interaction networks. Actors are the performers of action in the system, including people (students or teachers, coupled with their devices), groups of actors (where each actor has a well-defined group role), and computer agents called “bots” which help manage the system. Data objects are the information units in the ClassSync system and include artifacts such as media, messages, records, and processes (which may control tools for creating or modifying such artifacts or refer to them). Each data object may be classified in terms of one or more semantic types. Interaction networks are virtual networks constructed on top of whatever network ClassSync is running on. Interaction networks dictate ways in which information (data objects) may flow through the ClassSync system (from actor to actor). Activities are the processes performed via these three components. An activity will be a process in which actors consume and create data objects and exchange them over some interaction network. p. 2

CML is a modeling language that will allow authors and teachers to construct activities by creating assemblages of these component elements. Once such an activity has been modeled in this way, it is up to the ClassSync system to implement an activity at runtime. It is our intent that the CML description will allow for a wide range of implementations, on a wide range of technical platforms. Our goal is that CML will become useable in real time for assembling new activities “on the fly” as new learning and teaching opportunities emerge, as well as a means of preparing activities ahead of time by the teacher or other educational agents. p. 2

A User Interface for Flexible Activities “At the Board” Imagine a user interface for the teacher supporting activities “at the board,” in which one or more students are called upon to solve a problem in view of the class. This interface uses a theatrical metaphor. The theater has a stage, an audience, a script, and a backstage area where the props are stored. The script is a list of scenes specifying the cast (group definition of actors), situation (activity), and props (data objects). The teacher acts as director and calls actors, represented by icons, onstage from the audience. Once onstage, the actors have control of the props. The audience has a view of the action on stage. (The stage and actors model will be familiar from Programming by Rehearsal (Finzer & Gould, 1984), Stagecast (Smith & Cypher, 1998), and other Xerox PARC-influenced approaches to developing a computer program. We find the metaphor apt but not our point.) p. 2

Running the Show - IRE (Initiation-Response-Evaluation) Mehan (1978) defined a now well-recognized classroom discourse structure in the Initiation-Response-Evaluation sequence. which characterizes many instructional scenarios as: a teacher initiates an instructional sequence by asking a question, a student responds, and the teacher evaluates that response. So, let's follow the production of a CSCL variant of an IRE scene in our theater. Suppose our classroom is about to participate in GLOBE. a worldwide program for primary and secondary school students to collect, analyze, and report earth science data (GLOBE, 2001; Means & Coleman, 2000). The students have been instructed that they will be working together in groups to collect and analyze data. In order to ensure that the students understand this process well, the teacher will call upon some students to perform a measurement and analysis activity in front of the classroom. Collectively, they will measure the air temperature, pressure, and humidity and compare those values with similar measurements from another classroom across the country, and a set made at the same school in the previous semester. p. 2

First, the teacher initiates the scene by clicking “casting call” on it in the script. The Casting bot asks everyone who is to be invited to “try out” (in this case the entire class) by sending a message to the class group manager, which relays the message to every member of the class. The content of this message is a solicitation with the scene description (“You will work with a group of students to collect and analyze data.. .”) and a list of the roles that may be volunteered for (“Analyst, Temperature Measurer, Pressure Measurer, etc.. .”). The Casting bot passes responses back to the teacher. The teacher's GUI highlights the icons for the students who volunteered (“raised their hands”). (Some equity-related statistics may pop up as well, such as the time since the student last raised their hand or the total number of times the student has raised their hand on that day and overall.) Next, the teacher picks students to participate in the scene by dragging their actor icons onstage to the positions corresponding to the roles they should play. When the selection is complete the teacher clicks “positions.” The Casting bot then adds the selected students to the “cast” group for the scene. A Stage Director bot moves props from backstage (the teacher's repository) to front stage (the class group repository), according to the script. The cast group manager notifies students as they are added to the cast group, tells them where the props are and how to control them and tells them what their role is in the group. In this case, the “prop” the analyst receives is a spreadsheet containing the data to which the new data are to be compared. The other students in the activity get physical props-probes to attach to their handhelds. The teacher now clicks b'lights,” a command giving the class group view permission on the props and on the cast group manager itself, and allowing each member of the class group to see the cast group manager's member list. The GUI on the students' devices then provides each student with a view of the props, and a list of the cast-the illuminated stage. Having a “view” of a prop means that the prop can be viewed but not controlled by the viewer. For instance, the entire class could look at the data in the analyst's spreadsheet, but could not change it or add to it. Finally, the teacher clicks “Action”, which gives the cast group control of the props (and thus permission to modify them). Then the cast may begin to perform the scene by controlling the props and communicating with each other. As they do so, the audience's views are updated appropriately. So, in our GLOBE scenario, the action begins with the three measurers making their measurements. As each one performs the specified steps for these subactivities within the overall activity, the other students will have a view of what is going on in the measurers' devices. One by one, they transmit their measurements to the analyst who plots the data. When they complete these tasks, the group members prepare a summary by editing a shared summary document viewable by the class. The teacher may end the scene by dismissing the actors (casting bot removes them from the cast group) and dropping the lights (view permission taken away from the class group.) Before the lights are dropped, of course, it is likely that the teacher will want to take the stage and discuss the final state of the props of the class, or even modify them further. Likewise, the teacher may, at any time, add him or herself to the group onstage, and manipulate the props in some manner with them. For example, the GLOBE teacher may review and annotate the summary document before the class, or jump in during the analysis phase to demonstrate the procedure for generating a scatter plot in the spreadsheet application. p. 3

Interesting - modeling classroom activity as an information processing function p. 3

Definition At a modeling level of description, classroom activity can be defined as an information processing function having an input, an output, and a process by which the output is to be generated from the input This functional definition of an activity can be used to model activities ranging from IRE sequences, to role-playing activities (such as participatory simulations), to small group project-based work, to seatwork or homework exercises. p. 3

To achieve this versatility we allow for activities to be chained, networked, and nested. We call such a group of activities a linked activity. In the case of a chained activity, the output of one activity process becomes the input of another. For instance, one step in a sequence of a scientific activity might be to do data collection and a next step of the activity might be to do analysis of the data. So the output of the first step, the parameters and values of the collected data, becomes the input of the second step, whose output, in turn, could be a report of the analysis. p. 3

At a branching point, the next process is chosen based on the outcome of the current activity. p. 4

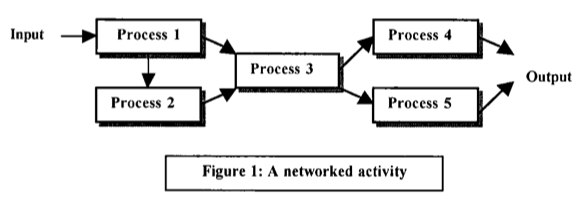

When activities are defined in CML, they are defined as having one or more specifiable semantic types of input and one or more specifiable semantic types of output. The specific value for the input does not necessarily have to be chosen until the activity is assigned. For instance, imagine the input of the activity diagrammed in Figure 1 is defined as triangle and the output is defined as area. This means that when the problem is assigned to a student, a specific triangle must be supplied, and a value representing an area will be the output that is ultimately produced by the activity (regardless of the path through the network). p. 4

Nesting activities provide a means by which a chained or networked activity is encapsulated in one activity, which in turn forms a part of another linked activity. So long as the linked activity has one input and one output it can be treated in CML just as an ordinary “one step” activity for the purposes of networking. By allowing activities to be nested in this way we make it easy to reuse activities and allow for designers to work on many levels of granularity. p. 4

The simplest lifecycle for an activity to have is to be transitory. The activity is assigned, the student immediately begins work on the process, and the activity ends when they generate the output. However, networks of activities can take on a more dynamic character. Consider the networked activity portrayed in Figure 1. Now, rather than one student making their way through the network, imagine instead that each activity in the network has been assigned to a different student. Further, rather than each activity in the network being performed once, instead imagine that an assigned activity lingers. In this situation, each activity is performed whenever the student to which it has been assigned receives the input associated with the activity. p. 4

In addition to activities lingering, ClassSync allows for simultaneity in the system. By this, we mean that there may be multiple data objects moving through the system simultaneously. In fact, ClassSync allows more than one input to be “processed” by an activity simultaneously. p. 4

The third dynamic quality of ClassSync is contingency. Contingency has already shown up implicitly in our networked activity with branching. By contingency we simply mean that activities are not necessarily performed. Rather, they are only performed if the appropriate input data object is sent to the actor to whom the activity has been assigned. p. 4

Authors specify when activities end, and can do so in a number of ways (with the teacher having the option to override the end condition). One way is similar to our transitory activity. As soon as the activity produces its final output, the activity ends. Of course, the author may intend that the students perform the activity process a few times, generating multiple outputs. In this case, there are a number of options. There can be an explicit time limit, at the end of which any existing intermediary or final output is collected. Another end condition is that the activity ends after all the required inputs have been supplied, and an output has been generated for each input. p. 4

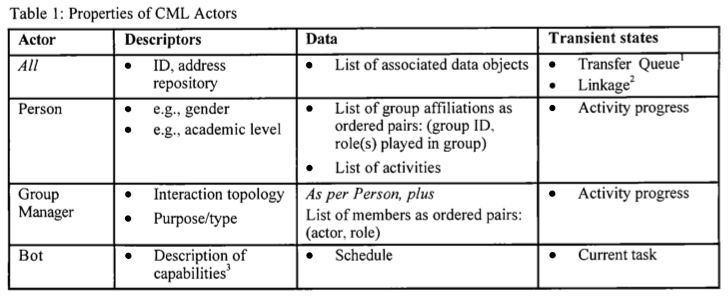

Actors While activities are the processes performed in the ClassSync system, actors are the entities in the system that either perform these processes or that facilitate their performance. CML includes three kinds of actors: person, group manager, and bot. A person is one individual and his or her associated device. A teacher is a special case of a Person. The teacher is the “superuser” of the ClassSync system. A group manager is the hub of an interacting group of actors (persons or other groups), primarily characterized by the interaction topology it enables amongst the members of the group. A bot is a computer agent, capable of performing specific tasks and of communicating its capabilities. Actors have three categories of properties associated with them: descriptors (metadata), data, and one or more transient states. These properties are summarized in Table 1 below. (All actors have the properties listed in the first row.) p. 4

'Uigsaw” Groups In the spirit of the “Jigsaw Classroom” approach (Aronson & Patnoe, 1997), a CML implementation could automatically create groups that join everyone whose roles in their existing groups are the same, with some default interaction topology. The teacher managing the system controls whether or not this function is turned on, and what the topology of an automatically generated jigsaw group ought to be. p. 6

Example After using the IRE to demonstrate the work the students will be doing, our teacher begins the GLOBE activity by dividing the 30-person class into six groups and assigning two groups to each of the three measurement protocols. Each group of five has the following roles, filled by actors of type “Student”: data collectors (3), data analyst (I), and a reporter (1) who compiles the group's write-up. The teacher specifies a group topology of P2P , though that may change when activities are assigned. Additionally, there is a group of groups called “Overall GLOBE Investigation” that includes all six groups. This group has six roles, two for each protocol, and each role must be filled by an actor of type “Group” with the appropriate description, e.g., “Humidity Investigators.” Next, the teacher must assign specific actors to roles. The teacher can do this by gestural input, or the system may offer some automated process operating under a teacher or author defined strategy. When assigning students to roles the teacher, or the automated process, might make use of actor descriptors. For example, it may create groups at random, but with the caveat that each group have gender balance. In the GLOBE activity example, the teacher may elect to assign the “natural leaders” in the class to the role of reporter. Also, in anticipation of the activity to come, the teacher in this activity elects to automatically generate a jigsaw group with P2P topology amongst all the data analysts. p. 6

Activity Centered Design (Gifford & Enyedy, 1999) represents a shift in the theoretical framework of CSCL from Learner Centered Design-which proves less suitable for collaborative models because of its focus on the p. 7

Look up activity-centered design p. 8

individual-to a model in which learning happens within an activity system consisting of people, artifacts (tools and data objects, as per above), and tasks linked within a social context. The model is neither simply learner- centered nor teacher-centered; rather, learners draw upon resources such as the teacher, other students, or tools and data as they participate in an activity. We applaud this emphasis as a productive modeling framework for CSCL as well as the other forms of socially-situated and artifact-mediated instructional activity that take place in classroom workflows (e.g., Cole, 1996). Such an Activity Theoretic focus has its roots in work by Vygotsky (1978) and Leont'ev (1979), and has been used fruitfully in CSCW research (e.g., Bodker, 1997; Nardi, 1996). CML fits neatly within this framework by providing a language for expressing the relations between the activity, actors, and toolsldata, which operate as part of a dynamic system. The system is dynamic because the relations do not have to be fixed or tightly coupled, nor do the activities have to proceed on a fixed trajectory. Actors move from one activity to the next, have tools and data objects at their disposal, and create data objects/tools that they may share or exchange with other actors. p. 8

CHALLENGES We have outlined a specification for the ClassSync Modeling Language, but acknowledge that there are formidable challenges to implementing a working system and applying it to commonplace curriculum design and classroom use. Every modeling language faces a tradeoff between expressiveness and usability. As language complexity increases, authors may create richer activities, but the system may become unwieldy. We are seeking a workable balance in this tradeoff space that nonetheless will provide a powerful action augmentation framework for teachers. CML does not model everything of significance to learning interactions that occurs in a classroom (e.g., social exchanges, uses of tools that are not computer-controllable). There will always be a gap between system knowledge and tacit knowledge, between formal interactions with the devices and real-world interactions. Nonetheless, we expect CML can model centrally significant aspects of e-learning workflows. The ClassSync system may require a non-trivial amount of training for the teacher and students, who may not be familiar with handheld devices, much less information exchange over a wireless network. We expect a design research focus (e.g., Edelson, Gordin & Pea, 1999) can iteratively improve on such issues toward a readily learnable system. Any implementation of ClassSync is bound to face practical issues related to the particular hardware or network used. This may lead to significant differences in system capability or performance that impose constraints on the kinds of activities that are practical. p. 8
